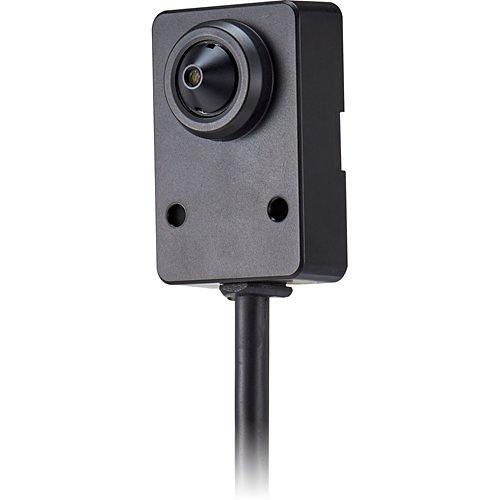

Hanwha SLA-T4680V 4.6mm Lens/Imager right angle body for XNB-6001 (8.0m cable)

Hanwha SLA-T4680V 4.6mm Lens/Imager right angle body for XNB-6001 (8.0m cable)

4.6mm Lens/Imager right angle body for
XNB-6001 (8.0m cable)

$225.00 USD

Request a quote

4.6mm pinhole lens module, compatible with the XNB-6001, right angle body style, 2MP @ 60fps, 0.06 Lux, 120dB WDR, 73º horizontal field of view, 8 meters/ 26 feet cable

Available as Hanwha Vision part number SLA-T4680V.

Technical specifications

Video

Specification Value
Imaging Device — Size 1/2.8"
Imaging Device — Type CMOS
Effective Pixels 1,945(H)x1,109(V) 2.16M
Min. Illumination (Lux) — Color(1/30sec, 30IRE) 0.06
Min. Illumination (Lux) — BW(1/30sec, 30IRE) 0.06

Lens

Specification Value
Focal Length (mm) 4.6
Max. Aperture Ratio (F number) — Wide 2.5
Angular Field of View — Horizontal 73°
Angular Field of View — Vertical 39°
Angular Field of View — Diagonal 85°
Mount Type RJ12 connected with main unit
Focus Control Fixed

Environmental & Electrical

Specification Value
Operating Condition — Temperature -10°C ~ +55°C (+14°F ~ +131°F)
Operating Condition — Humidity Less than 90% RH
Storage Condition — Temperature -50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity Less than 90% RH

Mechanical

Specification Value
Color Black
Material Plastic, Metal
Product Dimensions 30×20.2x45mm(1.18"x0.80"x1.77")
Product Weight 321g (0.71 lb)

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
