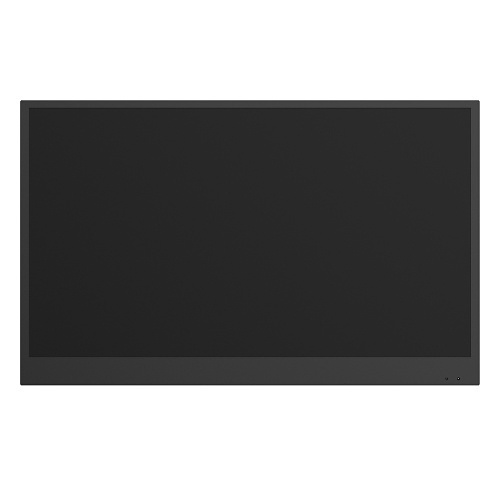

Hanwha SMT-2721D 27″ Monitor w/built-in IP Video Decoder
27″ Monitor w/built-in IP Video Decoder
$1,999.00 USD
27″ FHD monitor with built-in 64ch IP video decoder, HDMI video out x1 (FHD), Clone and Expand modes, Supported camera resolution: Up to 4K, Maximum decoding performance: 2x8MP@30fps, 12x2MP@30fps, ONVIF, SUNAPI, RTSP, H.265/H.264/MJPEG codec, Up to 20 Layouts, Sequencing, Built-in Speakers (1W x2), Ethernet 10/100/1000Mbps, VESA DPMS Compatible (100x100mm/200x200mm/200x100mm), Black Metal Cabinet, Dual Redundant Power (HPoE 802.3bt, DC 24V), NDAA compliant.
***Monitor stand and power adapters are not included***
Optional Accessories: HPoE Power Injector (SPO-8315), DC24V Power Adapter (SPU-60241), Monitor Stand (SBM-4343)
Product notes: 120 Days Lead Time.
Available as Hanwha Vision part number SMT-2721D.
Technical specifications
Display
| Specification | Value |
|---|---|
| Type | LED Monitor |
| Screen Size | 27inch |
| Max. Resolution | 1920×1080 |
| Brightness | 300 cd/m² |
| Contrast Ratio | 3000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7M |
| Response Time | 12ms |
| Panel Life | 30,000 hours |
Interface
| Specification | Value |
|---|---|
| Video — Connectors | HDMI#1 – Internal, Decoder main monitor, HDMI#2 – External, Decoder secondary monitor |
| HDMI — Connector | HDMI |
| HDMI — Available Format | 1280×720@60Hz, 1280 X 1024@60Hz, 1920×1080@60Hz |
| Audio — Output Signal | Speakers : 8Ω 1W x 2 |
| Network — Ethernet | 1xRJ-45 10/100/1000BASE-T |
| USB — USB | 2xUSB 2.0(Mouse,Keyboard), 1xUSB 2.0 (AD Firmware upgrade) |
On Screen Display
| Specification | Value |
|---|---|
| Functions | VESAâ„¢ DPMS Compatible |
| Language | English, Spanish, French, Korean |
General
| Specification | Value |
|---|---|
| Electrical — Input Voltage | DC24V, HPoE 802.3bt |
| Electrical — Power Consumption | 31W |
| Environmental — Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Environmental — Operating Humidity | 10% ~ 80% (non-condensing) |
| Mechanical — Dimensions without Stand (WxHxD) | 624x387x58mm(24.6×15.2×2.3") |
| Mechanical — Weight | 6.5kg(14.3lb) |
| Mechanical — Packing Dimension (WxHxD) | 725x500x150mm(28.5×19.7×5.9") |
| Mechanical — Packing Weight | 8.2kg(18.1lb) |
| Mechanical — Cabinet Color | Black |
| Mechanical — VESA Mounts Interface | 100x100mm, 200x100mm, 200x200mm |
Decoder
| Specification | Value |
|---|---|
| Video — Codec | H.265 / H.264 / MJPEG |
| Video — Max. Decoding Performance | 2x8M@30fps, 12x2M@30fps |
| Video — Division (/Monitor) | – Clone mode (HDMI#1) Max. 64, – Expand mode (HDMI#1) Max. 36 (HDMI#2) Max. 25 |
| Video — Layout | Up to 20, Sequence support |
| Audio — Codec | G.711 / G.726 / AAC |
| Management | Local UI, Web-Viewer, SSM |
| Time Setting | NTP/Manual |
| Export/Import | Configuration Export/Import |
| Log | Max. 100,000 (System log) |
| Protocol | RTP, RTSP, HTTP, CGI (SUNAPI), ONVIF |
| Security | IP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Techwin Root CA), Signed firmware |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
