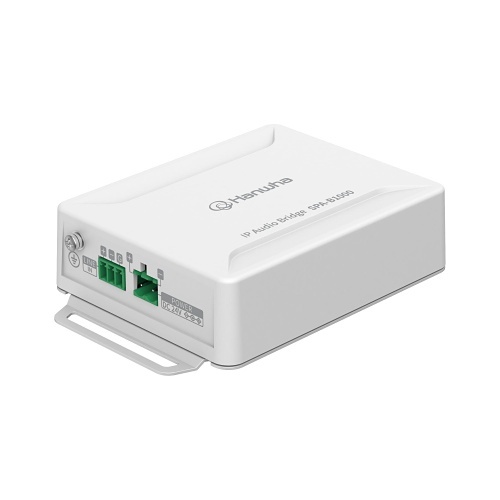

IP Audio Bridge, Background Music, Analog Audio Input (L, R : +6dBV Max line IN level), 1GB Internal Storage, Single Micro SD slot (Up to 32GB), Built in Relay, SUNAPI, PoE
Available as Hanwha Vision part number SPA-B1000.
Technical specifications
Product
| Specification | Value |
|---|---|
| IP Audio Type | IP Audio Module |
Line Input
| Specification | Value |
|---|---|
| Maximum Input Level | L, R : +6 dBV Max |
Amplifier
| Specification | Value |
|---|---|
| Description | Built in 10W Class D |
Network
| Specification | Value |
|---|---|
| Ethernet | 10/100 Base-T |
Memory
| Specification | Value |
|---|---|
| Internal Memory | 1 GBytes |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
Contact
| Specification | Value |
|---|---|
| Contact Input. Dry contact | One Channel |
| Contact Output. Dry contact (NO) | One channel |
General
| Specification | Value |
|---|---|
| Operating Temperature | -20°~+50°C(-4°F~+122°F) |
| Operating Humidity | 10~95%RH(Non-Condensing) |
| IP Code | N/A |
| Weight | 0.24Kg (0.53lb) |
| Size | 123(W)*80(H)*30.6(W)mm |
| Color | White |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : UL 62368-1, CAN/CSA 62368-1 |
Power
| Specification | Value |
|---|---|
| PoE | PoE (IEEE 802.3 af type 1 Class 3), Max.10W, DC24V |
| Power | N/A |
Network Protocol
| Specification | Value |
|---|---|
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log) |
| Supported Protocols | IPv4, HTTP, HTTPS, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Specification | Value |
|---|---|
| Application Programming Interface | SUNAPI(HTTP API) |
| Event & Preset | Virtual Contact, Dry contact |
| Functional Monitoring | Connection verification, Built-in system logging |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
