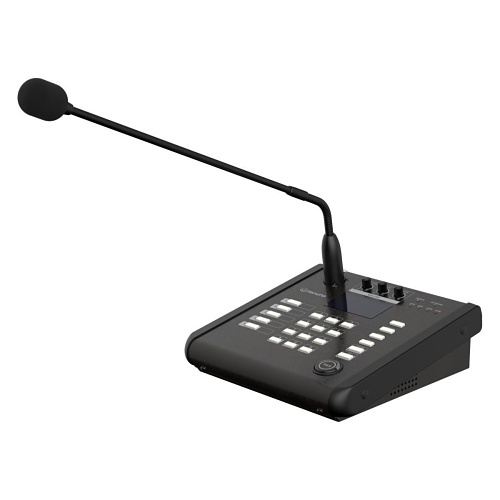

Desktop SIP Microphone for use with IPAS, Monitor Amp 1W/8Ω, DC24V, PoE, SUNAPI, SIP
Available as Hanwha Vision part number SPA-M2000.
Technical specifications
Product
| Specification | Value |
|---|---|
| IP Audio Type | IP Microphone |
Line Input
| Specification | Value |
|---|---|
| Maximum Input Level | -7 dBV, Aux Input Volume Max |
Amplifier
| Specification | Value |
|---|---|
| Description | 1W/8Ω, Monitor Amp |
Network
| Specification | Value |
|---|---|
| Ethernet | 10/100 Base-T |
General
| Specification | Value |
|---|---|
| Operating Temperature | -10°~+40°C(-14°F~+104°F) |
| Operating Humidity | 10~85%RH(Non-Condensing) |
| IP Code | N/A |
| Weight | 1.3 Kg (2.87lb) |
| Size | 200(W) x 73(H) x 206(L)mm |
| Color | Black |
| Certificate | EMC : KS C 9832/9835, EN 55.32/55035, FCC Part 15 Subpart B, ICES-003, Safety : KC 62368-1, UL 62368-1, CAN/CSA 62368-1 |
Power
| Specification | Value |
|---|---|
| PoE | PoE (IEEE 802.3 af type 1 Class 3) |
| Power | DC24V, Max 12W |
Embeded MIC
| Specification | Value |
|---|---|
| Input Sensitivity | -50 dBV± 3 dB (Mic Volume Max) |
| Frequency Response | 100Hz~6kHz |
Network Protocol
| Specification | Value |
|---|---|
| Security | Password protection : admin, setup, user, guest (sha-2, Digest authentication, User access log), Digest authentication, User access log |
| Supported Protocols | IPv4, HTTP, HTTPS, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
System Integration
| Specification | Value |
|---|---|
| Application Programming Interface | SUNAPI(HTTP API) |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk, Supported SIP features : DTMF (RFC2833), Supported codecs : PCMU, PCMA, speex/8000, speex/16000 |
| Functional Monitoring | Connection verification, Built-in system logging |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
