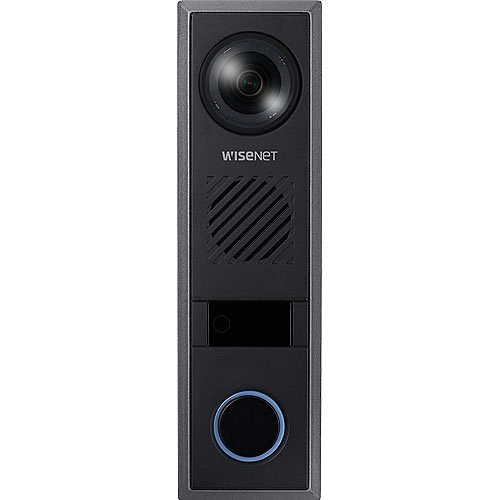

Video Intercom Station, 2MP@60fps, 1.6mm fixed lens (180° x 114°), triple codec H.265/H.264/MJPEG with Wisestream II, 150dB WDR, IR LEDs range 16’, Touchless call, Tow-way (Full duplex) audio, 85dB@0.5m, Echo cancellation and noise reduction, Built in tamper switch, Built in Relay, SIP 2.0, P2P-SIP, SIPS, IP65, IK08, NEMA4X, PoE, 12VDC
Available as Hanwha Vision part number TID-600R.
Technical specifications
Video
| Specification |
Value |
| Imaging Device — Size |
1/2.8" |
| Imaging Device — Type |
CMOS |
| Resolution |
1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate — H.265/H.264 |
60fps/50fps(60Hz/50Hz) |
| Max. Framerate — MJPEG |
30fps |
| Min. Illumination (Lux) — Color(1/30sec, 30IRE) |
0.018 |
| Min. Illumination (Lux) — BW(1/30sec, 30IRE) |
0.0018 |
| Video Out |
CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Specification |
Value |
| Focal Length (mm) |
1.6 |
| Max Aperture Ratio (F number) — Wide |
1.6 |
| Angular Field of View — Horizontal |
180° |
| Angular Field of View — Vertical |
114° |
| Angular Field of View — Diagonal |
180° |
| Min. Object Distance |
0.3m(0.98ft) |
| Focus Control |
Fixed |
Operational
| Specification |
Value |
| Day & Night |
Auto(ICR) |
| Backlight Compensation |
BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) |
150 |
| Digital Noise Reduction |
SSNRâ…¤ |
| Digital Image Stabilization |
Support |
| Defog |
Support |
| Motion Detection — Quantity |
8ea |
| Motion Detection — Shape |
8point Polygonal zones |
| Privacy Masking — Quantity |
32ea |
| Privacy Masking — Shape |
Polygonal zones |
| Privacy Masking — Color / Option |
Gray, Green, Red, Blue, Black, White, Mosaic |
| Gain Control |
Low, Middle, High |
| White Balance |
ATW, AWC, Manual, Indoor, Outdoor |
| Electronic Shutter — Mode |
Minimum, Maximum, Anti flicker |
| Electronic Shutter — Speed Range |
2~1/12,000sec |
| Alarm Interface — In/Out |
Input 2ea / Output 1ea |
| Alarm Interface — Others |
Relay out, Tampering switch, Touchless call |
| Alarm Triggers |
Analytics, Network disconnect, Alarm input |
| Alarm Events When Alarm Trigger Occurred |
File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, Audio clip playback |
| Audio Streaming |
Two-way/one-way selectable, Full duplex, Echo cancellation, Noise reduction |
| Audio In |
Built-in mic |
| Audio Out |
Built-in speaker |
| Light Type |
IR LED |
| Light Viewable Length — IR |
5m(16.40ft) |
| IR Wavelength |
850nm |
Analytics
| Specification |
Value |
| Analytics Events — Normal |
Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Specification |
Value |
| Ethernet |
Metal shielded RJ-45(10/100BASE-T) |
| Video Compression |
H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression |
G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz, Opus 8/16kHz |
| Smart Codec |
Manual, WiseStreamâ…¡ |
| Bitrate Control |
H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming — Unicast |
Up to 20 users |
| Streaming — Multicast |
Support |
| Streaming — Multiple Streaming |
Up to 10 profiles |
| Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), PPPoE, SIP 2.0(RFC 3261 and companion RFCs), PIM-SM |
| SIP support (VoIP, Peer-to-peer, SIP/PBX integration) |
Tested with Cisco, Grandstream, Yealink VoIP phones and Asterisk PBX software |
| Application Programming Interface — ONVIF |
S, T |
| Application Programming Interface — Others |
SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| Specification |
Value |
| OS / Firmware Protect |
Encrypted firmware |
| User authentication |
Digest authentication |
| Network authentication |
IEEE 802.1X(EAP-TLS, EAP-LEAP) |
| Secure Communication |
HTTPS |
| Access Control |
IP-based access control |
| Audit |
Access / System / Event Log management |
| Device ID |
Device certificate(Hanwha Vision Root CA) |
| Secure Storage |
SDcard partition encrypt(AES-256) |
General
| Specification |
Value |
| Memory — RAM |
2GB |
| Edge Storage — Micro SD/SDHC/SDXC |
Max. 256GB x 1slot |
Environmental & Electrical
| Specification |
Value |
| Operating Condition — Temperature |
-30°C~+55°C(-22°F~+131°F) |
| Operating Condition — Humidity |
0~95% RH(non-condensing) |
| Storage Condition — Temperature |
-50°C~+55°C(-58°F~+131°F) |
| Storage Condition — Humidity |
0~95% RH(non-condensing) |
| Input Voltage |
PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption — PoE |
Max 12.95W, typical 9.1W |
| Power Consumption — 12VDC |
Max 17.7W, typical 7W |
Mechanical
| Specification |
Value |
| Color |
Dark grey |
| Material |
Aluminum |
| RAL Code |
RAL7022 |
| Product Dimensions |
49(W)x165(H)x48(D)mm(1.93×6.50×1.89") |
| Product Weight |
490g(1.08lb) |
Certifications & Standards
| Specification |
Value |
| EMC |
FCC 47 CFR 15 Subpart B Class A, CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Environment |
IEC 62262 IK08, NEMA 250 type 4X, IEC 60529 IP65 |
DORI (EN62676-4 standard)
| Specification |
Value |
| Detect (25PPM/ 8PPF) — Wide |
20.72m(67.98ft) |
| Observe (63PPM/ 19PPF) — Wide |
8.29m(27.20ft) |
| Recognize (125PPM/ 38PPF) — Wide |
4.14m(13.58ft) |
| Identify (250PPM/ 76PPF) — Wide |
2.07m(6.79ft) |
Ver
| Specification |
Value |
| Ver |
202 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
