Hanwha XNB-A8004B 5MP AI Remote Head Camera Main Unit (1-Channel)

Single-channel AI main unit for Hanwha remote head cameras on the Wisenet 9 platform, up to 5 MP at 30 fps. Part number XNB-A8004B.

$950.00 USD

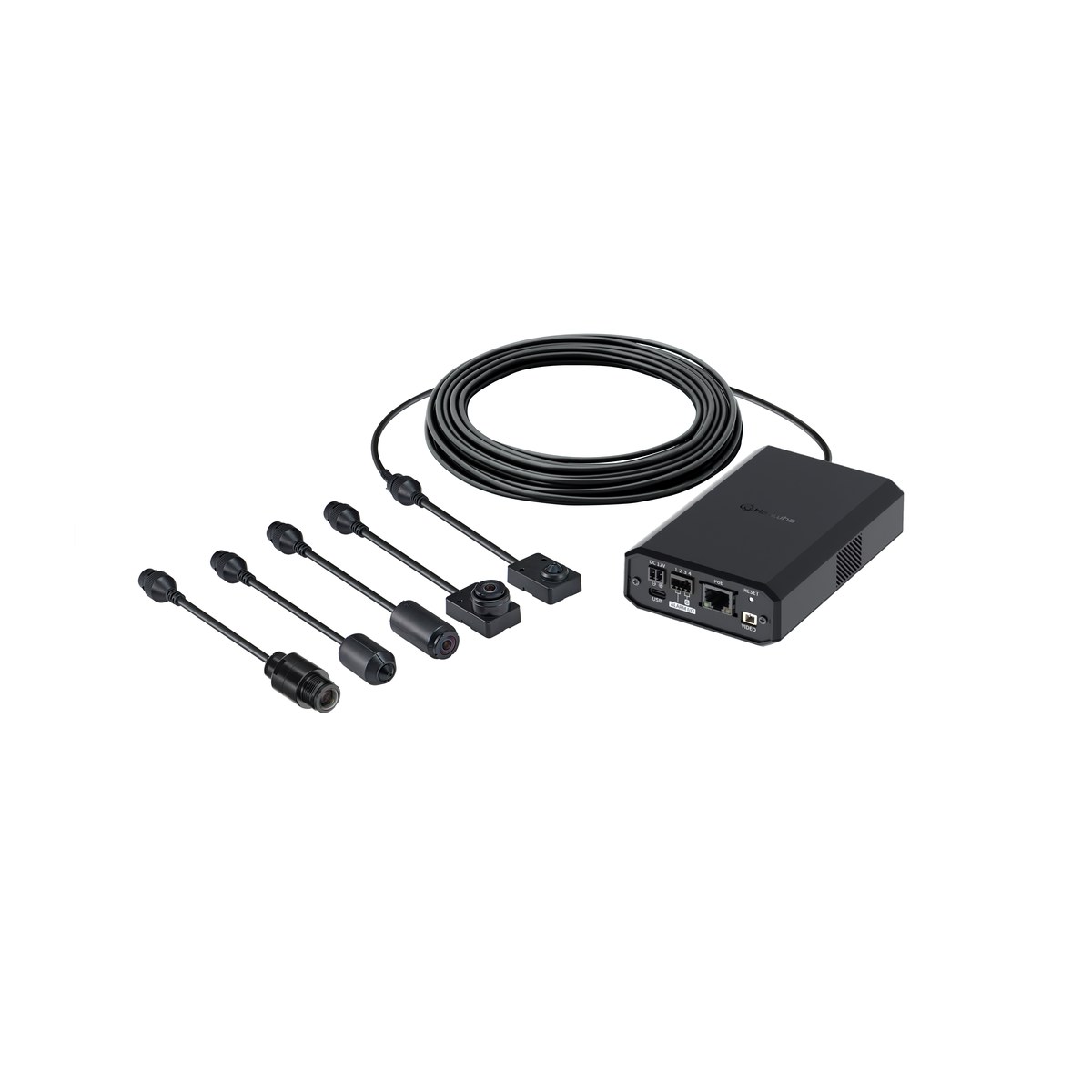

Hanwha XNB-A8004B (part number XNB-A8004B) is a single-channel AI main unit for Hanwha remote head cameras on the Wisenet 9 (WN9) platform. It records up to 5 MP at 30 fps and works with 5 MP and 2 MP (“A” revision) remote lens modules, which are ordered separately.

On-board AI analytics classify people, faces, vehicles and licence plates and support line crossing, area events and slip-and-fall detection, with people, vehicle and crowd counting, queue management and heatmaps. The unit also provides extremeWDR (120 dB), CVBS and USB-C ports for installation, selectable audio input (mic in or line in), a microSD slot for up to 1 TB and a secure element certified to FIPS 140-3 Level 3. It operates from -10 °C to +50 °C (14 °F to 122 °F) and is powered by 12 V DC or PoE+.

Technical specifications

Video

Specification	Value
Resolution	2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×960, 1280×720, 1024×768, 800×600, 640×480, 640×360, 320×240, 320×180
Max. Framerate — H.265/H.264	30fps/25fps(60Hz/50Hz)
Max. Framerate — MJPEG	30fps(@5MP Max. 5fps)
Video Out	CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle.

Lens

Specification	Value
Optional Lens	SLA-T1080FA, SLA-T2480A, SLA-T4680A, SLA-T2480VA, SLA-T4680VA, SLA-T2480BA, SLA-T2880BA, SLA-T4680DA, SLA-T4680DSA, SLA-T2480WA, SLA-T2480WDA, SLA-F1080FA, SLA-F2480A, SLA-F4780A, SLA-F2480VA, SLA-F4780VA, SLA-F2480BA, SLA-F2480DA, SLA-F2480DSA, SLA-F2480WA, SLA-F2480WDA, SLA-F2480HA, SLA-T4615VA, SLA-T2480HA

Operational

Specification	Value
Day & Night	Auto(Electrical)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)	120
Digital Noise Reduction	WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization	Support
Defog	Support
Motion Detection — Quantity	8ea
Motion Detection — Shape	8point Polygonal zones
Privacy Masking — Quantity	32ea
Privacy Masking — Shape	8point Polygonal zones
Privacy Masking — Color / Option	Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Privacy Masking — Dynamic Privacy Masking: Color / Option	Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain Control	Off, Max gain, Manual
White Balance	ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDC	Support(Not support for fisheye lens)
Electronic Shutter — Mode	Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Electronic Shutter — Speed Range	2~1/30,000sec
Video Rotation	Flip, Mirror, Hallway view(90°/270°)
Alarm Interface — In/Out	2 configurable I/O ports
Alarm Interface — Others	Support extra alarm I/O via optional I/O box
Alarm Triggers	Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption
Alarm Events When Alarm Trigger Occurred	File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio In	Selectable(mic in/line in)
Audio Out	Line out

Analytics

Specification	Value
Classified Object Type	Person, Face, Vehicle, License plate
Attributes — Person	Upper/Lower clothes color, Gender, Bag
Attributes — Vehicle	Type(car, bus, truck, motorcycle, bicycle), Color
Attributes — Face	Age, Gender, Face mask, Glasses
Thumbnail	BestShot
Analytics Events — Based on AI Engine	Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Tailgating detection
Analytics Events — Normal	Defocus detection, Tampering, Audio detection, Shock detection
Business Intelligence — Based on AI Engine	People counting, Queue management, Heatmap, Vehicle counting, Crowd counting

Network

Specification	Value
Ethernet	Metal shielded RJ-45(10/100BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression	G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps)
Smart Codec	WiseStream(Based on AI engine)
Bitrate Control	H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming — Unicast	Up to 20 users
Streaming — Multicast	Support
Streaming — Multiple Streaming	Up to 5 profiles, 3 virtual channel support
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog
Application Programming Interface — ONVIF	S, G, T, M
Application Programming Interface — Others	SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection	Support

Security

Specification	Value
OS / Firmware Protect	Encrypted firmware, Secure boot, Signed firmware
User authentication	Digest authentication, Prevent brute-force attack
Network authentication	IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication	HTTPS, WSS(WebSocket Secure), SRTP
Access Control	IP-based access control, MAC-based access control, Auto logout
Data Protect	Encryption credentials, Encrypt compress for live recording file export
Audit	Access / System / Event Log management
Device ID	Device certificate(Hanwha Vision Root CA)
Secure Storage	SDcard partition encrypt(AES-256), Secure element
Supply Chain Security	SBOM
Security Certificate	Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)

General

Specification	Value
SoC — Type	Wisenet 9
SoC — Dual NPU	Support
Memory — RAM	4GB
Memory — Flash	8GB eMMC
Edge Storage — Micro SD/SDHC/SDXC	Max. 1TB x 1slot
Edge Storage(OnCloud) — Micro SD/SDHC/SDXC	Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.

Environmental & Electrical

Specification	Value
Operating Condition — Temperature	-10°C~+50°C(+14°F~+122°F)
Operating Condition — Humidity	0~95% RH(non-condensing)
Storage Condition — Temperature	-50°C~+60°C(-58°F~+140°F)
Storage Condition — Humidity	0~90% RH(non-condensing)
Input Voltage	PoE(IEEE802.3af, Class3), 12VDC
Power Consumption — PoE	Max. 10.6W, typical 9.3W
Power Consumption — 12VDC	Max. 10.5W, typical 9.0W
WisePower	Power monitoring
Power Redundance Failover	Support

Mechanical

Specification	Value
Color	Black
Material	Aluminum, PC(Polycarbonate)
Material Management — Declaration	RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act)
RAL Code	RAL9005
Product Dimensions	131.1(W)x33.5(H)x86(D)mm(5.16×1.32×3.39")
Product Weight	467g(1.03lb)

Certifications & Standards

Specification	Value
EMC	FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA – EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety	UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environment	IEC/EN 63000, IEC 60529 IP3X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78

Ver

Specification	Value
Ver	202507

Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
