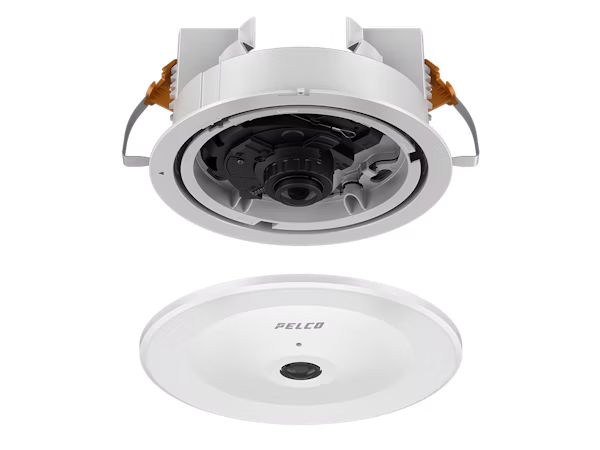

Pelco Sarix Fisheye 3 – In-Ceiling 360° Camera

The Pelco Sarix Fisheye 3 In-Ceiling 360° installs flush into a standard drop ceiling tile for a clean, discreet appearance — perfect for retail stores, offices, healthcare facilities, and schools. Delivers complete 360° overhead panoramic coverage from a single camera point, with automatic dewarping for natural proportions. Available in 8MP or 12MP.

IP54 rated for indoor environments. Operating range -10°C to +60°C. PoE 802.3af Class 3, 12W. Polycarbonate housing, 200.6mm diameter × 18.4mm profile. Max ceiling thickness 31.75mm (1.25″). Analytics supported in ceiling-mounted orientation mode.

Key Features

• 8MP or 12MP fisheye sensor (1/1.8″ or 1/1.6″ CMOS) — 30% more pixel resolution on 12MP models
• 360° panoramic or 180° wide-angle field of view with automatic dewarping to natural proportions
• Fisheye-optimized Smart Analytics — detects individuals from head/shoulder silhouettes even directly below the camera
• Audio analytics: gunshot detection up to 100m, glass break, scream, car alarm, smoke alarm, loud noise
• Built-in microphone with hardware disable switch; line-level audio I/O
• Up to 120 dB WDR; HDSM SmartCodec for bandwidth efficiency; H.264/H.265/MJPEG
• NDAA 2019 Section 889 compliant; FIPS 140-3 Level 3 (onboard TPM); Secure Boot
• Dual microSD/SDXC slots — up to 1.5TB tested; 4GB RAM / 4GB Flash
• ONVIF Profile S/T/G/M; compatible with VideoXpert, Milestone, and Genetec VMS
• Pelco Elevate Enabled — automated firmware management, image health monitoring
• 5-year warranty

Part Number Reference

Use the Resolution dropdown above to choose 8MP or 12MP. Both in-ceiling models are 360° with no IR illumination.

Part numbers covered: SRXF3-8360-I, SRXF3-12360-I

Need help selecting the right Pelco fisheye model? CamCentral can assist with design guidance, availability, and project pricing.
