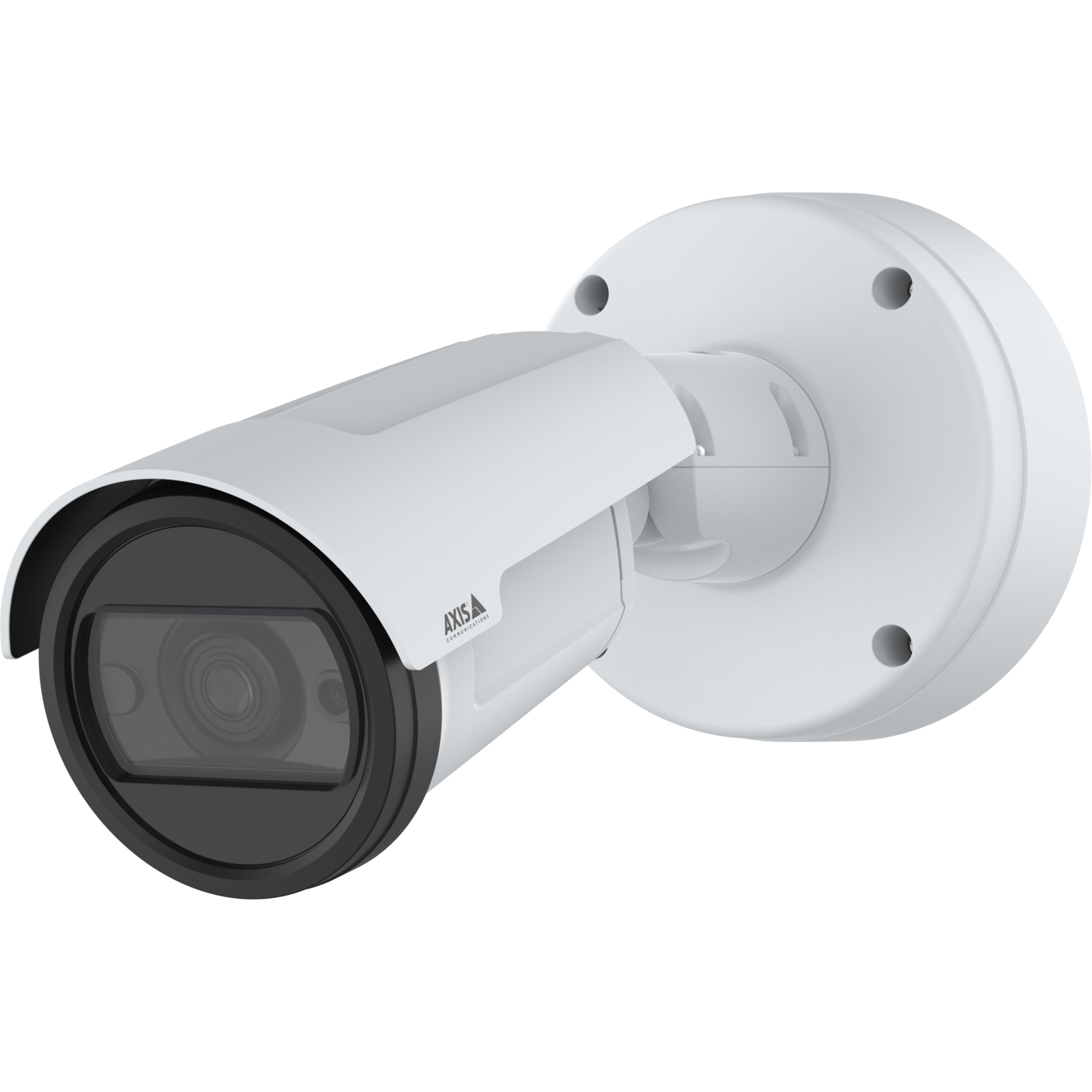

1/2.8” image sensor, tele outdoor fixed bullet camera, NEMA 4X, IP66, IP67 and IK10-rated, 1080p / 2 MP resolution, day/night, with Deep Learning Processing Unit (DLPU). ARTPEC-9 SoC. Forensic WDR and Lightfinder 2.0, OptimizedIR, a power-efficient 850nm IR LED technology. Varifocal IR corrected 10.8-28.2 mm tele lens, 29.4°-11° HFOV with remote zoom, focus and corridor format. Multiple, individually configurable H.264/H.265/AV1 with Zipstream and Motion JPEG. 2 MP stream up to 50/60 fps. AXIS Object Analytics, AXIS Image Health Analytics and AXIS Scene Metadata. AXIS Edge Vault with FIPS 140-3 Level 3 for added cyber security. Barrel distortion correction, defogging, electronic image stabilization, shock detection and scene profiles. MQTT Support. Audio in jack, audio out with speaker pairing and supervised I/O port, microSD memory card slot. Integrated bracket for easy mounting on wall and ceiling.
Powered by IEEE 802.3af Type1 Class 3 (PoE) or 10-28 V DC power with redundancy. Operation conditions -40°C to +60°C (-40 ºF to 140 ºF). Includes removable sunshield and IP66/67- rated cable glands. Midspan not included
AXIS Product Number: 03182-001
Technical specifications
Key specifications: video resolution up to 1920×1080; 2.61x optical zoom; IP66, IP67 rated; IK10 vandal-resistant; operating range -40 to 60 °C; PoE Class 3 powered; Forensic WDR. Manufacturer part number 03182-001.
Camera
| Specification |
Value |
| Image sensor |
CMOS |
| Image sensor size |
1/2.8" |
| Lightfinder |
Lightfinder 2.0 |
| Wide dynamic range |
Forensic WDR |
| Min illumination/ light sensitivity (Color) |
0.06 lux |
| Min illumination/ light sensitivity (B/W) |
0 lux |
Video
| Specification |
Value |
| Max video resolution |
1920×1080 |
| Max frames per second |
50/60 |
| Electronic image stabilization |
Yes |
Lens
| Specification |
Value |
| Focal length |
10.8-28.2 mm |
| Optical zoom |
2.61 |
| Horizontal field of view |
29-11 ° |
| Vertical field of view |
17-6 ° |
Compression
| Specification |
Value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
Yes |
Audio
| Specification |
Value |
| Audio Support |
Yes |
Network
| Specification |
Value |
| PoE Class |
3 |
Security
| Specification |
Value |
| Signed OS |
Yes |
| Secure boot |
Yes |
| Secure keystore |
Secure Element (CC EAL6+, FIPS 140-3 Level 3) |
General
| Specification |
Value |
| Remote focus |
Yes |
| Remote zoom |
Yes |
| Built-in IR |
Yes |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-40 to 60 °C |
| Outdoor Ready |
Yes |
| Vandal rating |
IK10 |
| IP rating |
IP66, IP67 |
| Designed for repaint |
Yes |
| Sustainability |
BFR/CFR free, PVC free |
Power
| Specification |
Value |
| Power (max) |
13.0 W |
| Power (average) |
6.1 W |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
