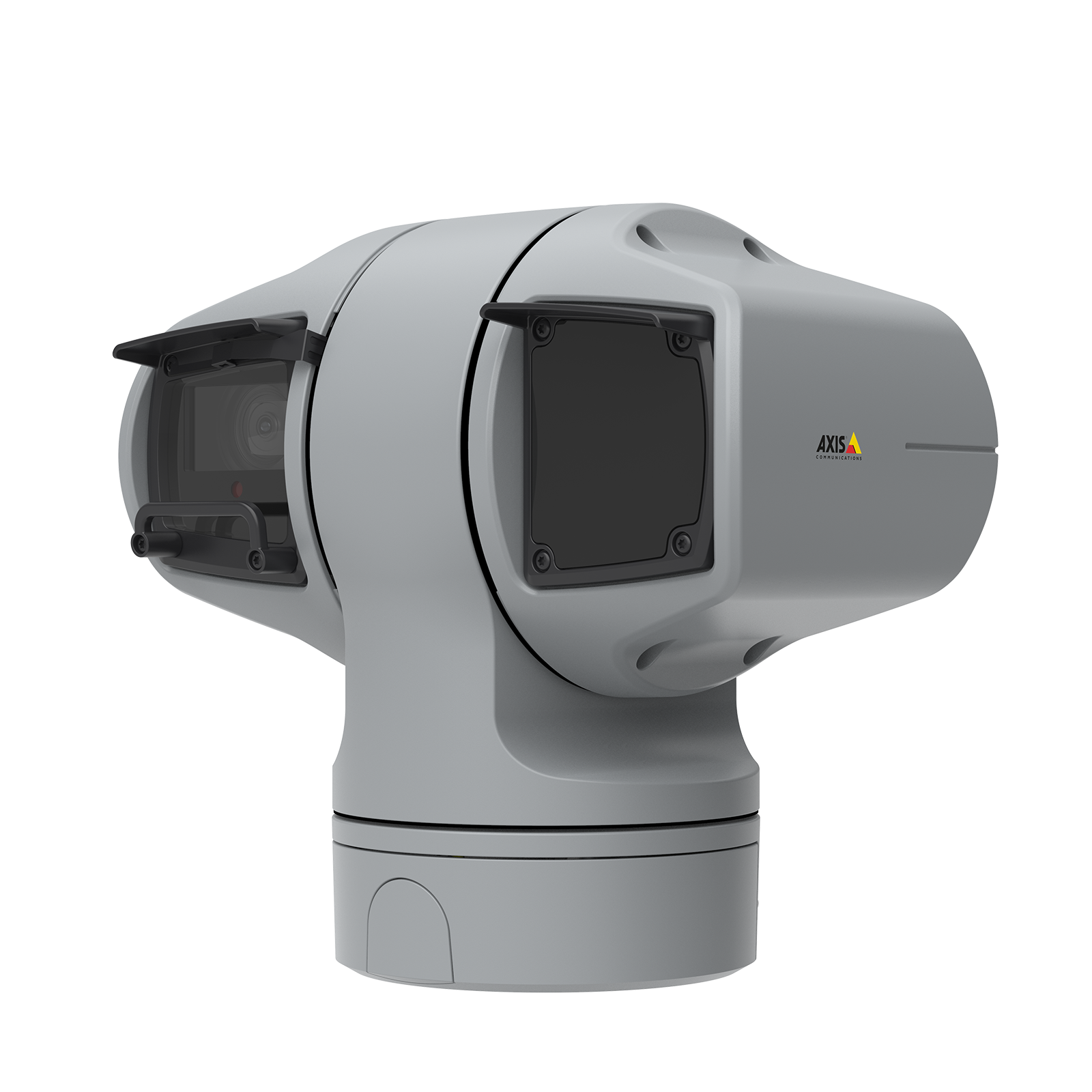

TZ for the toughest conditions. MIL specified, build in IR illumination 400M (1300t), can be mounted face up or face down. IP66/67/68, IK10, MIL 8105 521, NEMA TS2 for temperature up to 74C (165F), Arctic temperature control.
Camera part; ½” sensor with HDTV 1080p, 30x optical zoom, 60fps, H264/H.265 with Zipstream and Motion JPEG, WDR, improved EIS. Perfect image quality in all directions without distortion, window wiper. Autotracking 2, Tour recording and Active Gatekeeper. Compass ruler overlay, Privacy mask with chameleon and mosaic masking. Highlight compensation. Build in analytics. 90W. Color; Urban grey.
No Midspan or mounting bracket included (several different accessories available).
AXIS Product Number: 02317-301
Technical specifications
Key specifications: video resolution up to 1920×1080; 31x optical zoom; IP66, IP68 rated; IK10 vandal-resistant; operating range -50 to 55 °C; PoE Class 8 powered; Forensic WDR. Manufacturer part number 02317-301.
Camera
| Specification |
Value |
| Image sensor |
CMOS |
| Image sensor size |
1/2" |
| Lightfinder |
Lightfinder 2.0 |
| Wide dynamic range |
Forensic WDR |
| Min illumination/ light sensitivity (Color) |
0.06 lux |
| Min illumination/ light sensitivity (B/W) |
0.001 lux |
Security
| Specification |
Value |
| Signed OS |
Yes |
| Secure boot |
Yes |
| TPM |
Yes |
General
| Specification |
Value |
| Built-in IR |
Yes |
| OptimizedIR |
Yes |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-50 to 55 °C |
| Outdoor Ready |
Yes |
| Vandal rating |
IK10 |
| IP rating |
IP66, IP68 |
| Designed for repaint |
Yes |
Analytics
| Specification |
Value |
| Autotracking version |
Autotracking 2 |
| Orientation aid |
orientation aid PTZ |
Video
| Specification |
Value |
| Max video resolution |
1920×1080 |
| Max frames per second |
50/60 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
Yes |
Lens
| Specification |
Value |
| Focal length |
6.91 – 214.69 mm |
| Horizontal field of view |
63.8 – 2.2 ° |
| Vertical field of view |
37 – 1.3 ° |
Pan Tilt Zoom
| Specification |
Value |
| Pan range |
360 endless |
| Tilt range |
-90 to +90 |
| Guard tour |
preset position tour |
| Optical zoom |
31 |
| Digital zoom |
12 |
Compression
| Specification |
Value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
Yes |
| AV1 |
– |
Audio
| Specification |
Value |
| Audio Support |
Yes |
| Built-in microphone |
– |
Sys
| Specification |
Value |
| Audio detection |
Yes |
| Active tampering |
– |
| Alarm inputs/outputs |
3 |
Network
| Specification |
Value |
| PoE Class |
8 |
Specifications from official manufacturer documentation. Some values may vary by hardware configuration.
