Explosion-proof aluminum IR PTZ — 2MP / 30X with a dual-head 850 nm IR illuminator (150 m), for oil & gas, petrochemical, and marine sites. 100–240 VAC.

$13,738.14 USD

Request a quote

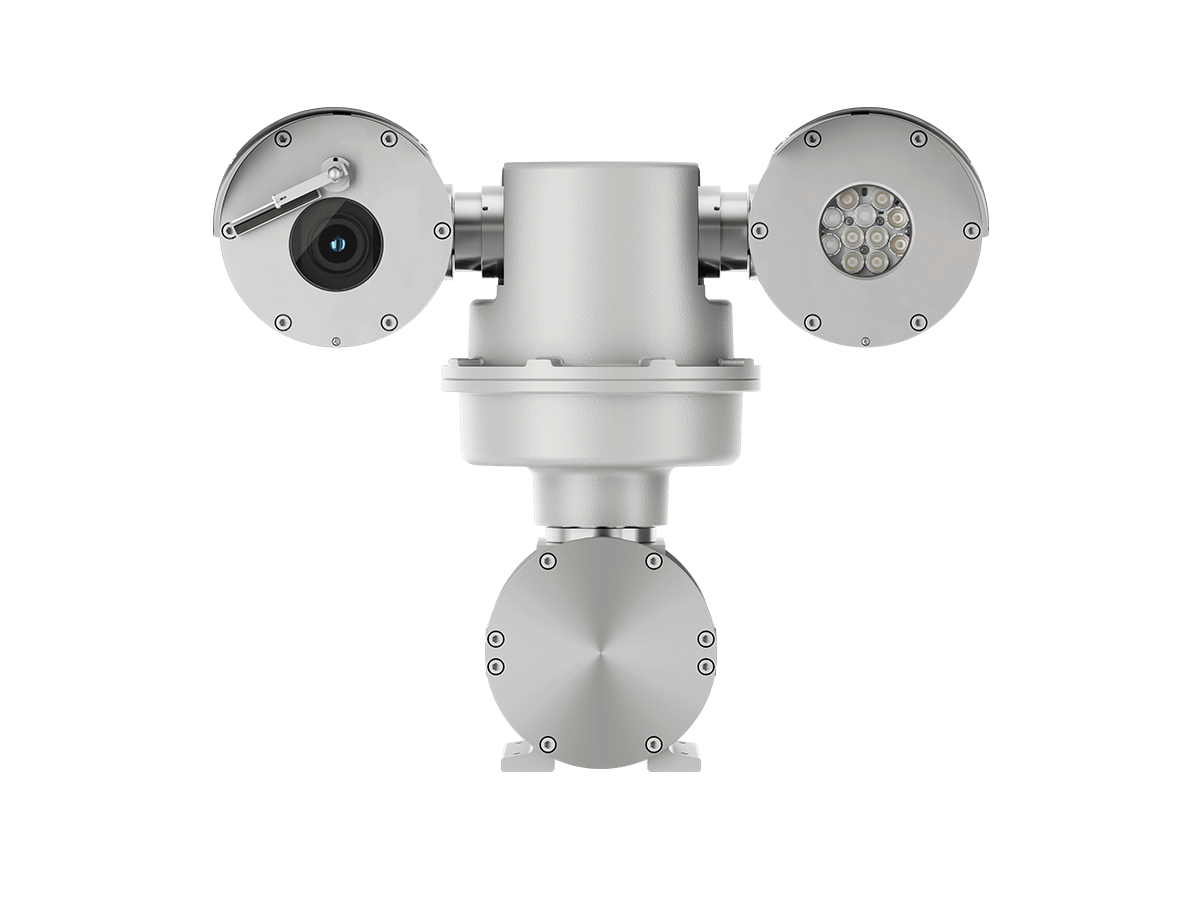

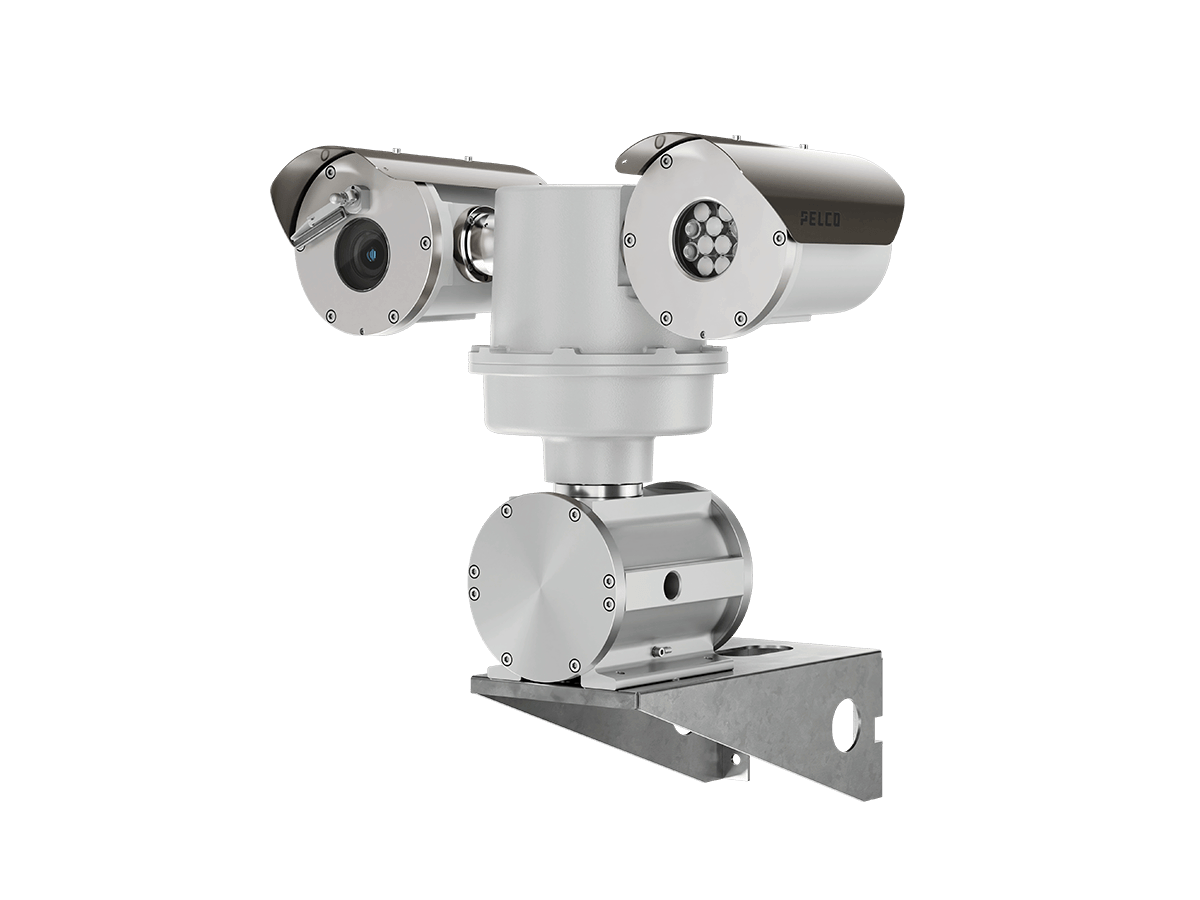

The Pelco ExSite Pro IR PTZ is an explosion-proof aluminum PTZ camera with a built-in infrared illuminator, engineered for hazardous industrial sites such as oil & gas, petrochemical, and marine facilities. The EXLP1-2X30-EPT-85B0M3 delivers 2MP imaging with 30X optical zoom and a dual-head 850 nm IR illuminator reaching up to 150 m for clear surveillance in complete darkness. Its powder-coated, anodized, copper-free aluminum housing meets explosion-proof and dust-ignition-proof requirements, operates reliably from −40°C to +70°C, and runs on 100–240 VAC mains power.

  • Explosion-proof and dust-ignition-proof aluminum PTZ for hazardous locations
  • 2MP imaging with 30X optical zoom
  • Dual-head 850 nm IR illuminator with up to 150 m range
  • Powder-coated, anodized, copper-free aluminum construction; −40°C to +70°C
  • Pelco Smart Analytics with ONVIF Profile S/G/T/M conformance
  • Mains 100–240 VAC power

Note: Pelco explosion-protected cameras are not eligible for advance replacement under warranty.

Technical specifications

Family specifications from the official Pelco datasheet. Manufacturer part number EXLP1-2X30-EPT-85B0M3; some values vary by model variant — see the datasheet or ask us to confirm your exact configuration.

Image Performance

Specification Value
Image Sensor 1/2.8" progressive scan CMOS
Active Pixels (H x V) 1945 (H) × 1097 (V)
Imaging Area (H x V) 5.568 mm (H) × 3.132 mm (V); 0.219 ” (H) × 0.123 ” (V)

Ir Illumination

Specification Value
Dual head 13° and 40°16°; 150m
Min Illumination 0.1 lux in color mode; 0.06 lux in monochrome mode
Wavelength 850nm

Illumination

Specification Value
of illumination 13° (horizontal), 13° (vertical)
Dynamic Range Up to 120 dB
Image Rate Up to 60 fps
Aspect Ratio (Resolution Scaling) Down to (16:9) 384×216 or (5:4) 320×256
3D Noise Reduction Filter Yes
S/N Ratio More than 50dB

Lens

Specification Value
Horizontal (16:9) 2.34° – 65.1°
Vertical (16:9) 1.36° – 38.4°
Zoom Up to 30x

Image Control

Specification Value
Video Compression H.264 and H.265 Pelco Smart Compression, Motion JPEG
Streaming Multi-stream H.264, Multi-stream H.265, Motion JPEG
Electronic Shutter Control Automatic, Manual (1/1 to 1/30,000 sec)
Iris Control Automatic, Open, Closed
Day/Night Control Automatic, Color, Monochrome, External
Flicker Control 60 Hz, 50 Hz

Image Control

Specification Value
White Balance Automatic, Manual
Privacy Zones 3D, up to 64 zones
Presets 500 named presets
Digital Zoom 12X
Tours 10 named tours
Electronic Image Stabilization Yes

Network

Specification Value
Ports RJ45 connector (CAT5E cabling) and SFP slot
ONVIF ONVIF compliance Profile M, Profile S, Profile T, and Profile G (www.onvif.org)
Protocols IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP,
Device Management Protocols SNMP v2c, SNMP v3

Mechanical

Specification Value
EXPP 383 mm x 267 mm x 463 mm; 15" x 10.5" x 18.2"
EXPL 540 mm x 267 mm x 463 mm; 21.2" x 10.5" x 18.2"
EXPP 20.9 kg; 46 lbs
EXPL 25.4 kg; 56 lbs

Construction

Specification Value
Pan Movement 360° continuous
Vertical Tilt -90° to 90°
Tilt Speed 100°/s

Wiper

Specification Value
Cable Entry 2 x 3/4" NPT
Pre-Set Accuracy 0.2°
Sunshield AISI 316L stainless steel

Electrical

Specification Value
Local Storage SD card support (Class V10 or better recommended)
Ports 10BASE-T/100BASE-T, RJ45 connector (CAT5E cabling) and SFP slot

Electrical

Specification Value
Power Consumption 100 W max.
Input Voltage (Power) From 100 VAC to 240 VAC ±10%, 1.2 A, 50/60 Hz
Relay Outputs 2 (1A, 30 VAC/30 VDC max)
Audio Input and Output None
washing system 24 VDC, 12 Wmax

Environmental

Specification Value
Operating Temperature -40 °C to +60 °C (-40 °F to 140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to 158 °F)
Humidity 5% – 95% non-condensing
Cold Start Up to 2 hour startup delay at temperature lower than -10 °C (14 °F)
Wind Resistance Ptz static: 200km/h (125mph) max.

Certifications

Specification Value
Safety UL 62368-1, CSA 62368-1, IEC/EN 62368-1, IEC/EN 62471, IS13252(PART1):2010/IEC60950-1:2005
Hazardous ATEX (EN IEC 60079-0, EN 60079-1, EN 60079-31), IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31),; INMETRO (ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, ABNT NBR IEC 60079-31),; UK Ex (EN IEC 60079-0, EN 60079-1, EN 60079-31), KCs (Employment and labor department 2021-22),
Environmental and Performance UL/CSA/IEC 60950-22, IEC 62262 Impact Rating (enclosure only), IEC 60529 IP69 Weather Rating,; IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-30, IEC 60068-2-52; NEMA TS 2 para 2.2.7 – 2.2.9, Type 4X and 6P
Electromagnetic Emissions FCC Part 15 Subpart B Class A, IC ICES-003 Class A, EN 55032 Class A, EN 61000-6-4, EN 61000-3-2,
EN 61000-3-3 Electromagnetic Immunity; EN 50130-4
Vibration test EN 50130-5, EN 60068-2-6
Warranty 3-year limited warranty. 5-year extended warranty is available.
temperature UL 23 ATEX 3004X
Ex II 2G Ex db IIB+H2 T5 Gb Ex II 2D Ex tb IIIC T100°C Db
-40°C ≤Ta ≤+70°C +81°C
Ex II 2G Ex db IIC T6 Gb Ex II 2D Ex tb IIIC T85°C Db
-40°C ≤Ta ≤+60°C +80°C
EXPP – Certifications and Marking IECEx ULD 23.0012X
Ex db IIB+H2 T5 Gb Ex tb IIIC T100°C Db
-40°C ≤Ta ≤+70°C +81°C
Ex db IIC T6 Gb Ex tb IIIC T85°C Db
-40°C ≤Ta ≤+60°C +80°C
UK Ex – UL23UKEX2846X Ex II 2G Ex db IIB+H2 T5 Gb
Ex II 2D Ex tb IIIC T100°C Db -40°C ≤Ta ≤+70°C
+81°C Ex II 2G Ex db IIC T6 Gb
Ex II 2D Ex tb IIIC T85°C Db -40°C ≤Ta ≤+60°C
+80°C KCs 24 – KA4BO-0030X – 24-
KA4BO-0031X Ex db IIB+H2 T5 Gb
Ex tb IIIC T100°C Db -40°C ≤Ta ≤+70°C
+81°C KCs 24 – KA4BO-0029X – 24-
KA4BO-0031X Ex db IIC T6 Gb
Ex tb IIIC T85°C Db -40°C ≤Ta ≤+60°C
+80°C INMETRO UL-BR 24.0211X
Ex db IIB+H2 T5 Gb Ex tb IIIC T100°C Db
-40°C ≤Ta ≤+70°C +81°C
Ex db IIC T6 Gb Ex tb IIIC T85°C Db
-40°C ≤Ta ≤+60°C +80°C; cULus E319666 Hazardous
Location America Class I, Zone 1, AEx db IIB+H2 T5 Gb
Zone 21, AEx tb IIIC T100°C Db Class I, Div 2, Group B, C, D T5
Class II, Div 2, Group F, G T5 -40°C ≤Ta ≤+70°C
+81°C Class I, Zone 1, AEx db IIC T6 Gb
Zone 21, AEx tb IIIC T85°C Db Class I, Div 2, Group A, B, C, D T6
Class II, Div 2, Group F, G T6 -40°C ≤Ta ≤+60°C
+80°C cULus E319666 Hazardous
Location Canada Ex db IIB+H2 T5 Gb X
Ex tb IIIC T100°C Db X Class I, Div 2, Group B, C, D T5
Class II, Div 2, Group F, G T5 -40°C ≤Ta ≤+70°C
+81°C Ex db IIC T6 Gb X
Ex tb IIIC T85°C Db X Class I, Div 2, Group A, B, C, D T6
Class II, Div 2, Group F, G T6 -40°C ≤Ta ≤+60°C; +80°C
TS mark Ex db IIB+H2 T5 Gb
Ex tb IIIC T100°C Db -40°C ≤Ta ≤+70°C
+81°C Ex db IIC T6 Gb
Ex tb IIIC T85°C Db -40°C ≤Ta ≤+60°C; +80°C
Cable entry temperature UL 23 ATEX 3004X
Ex II 2G Ex db IIB+H2 T5 Gb Ex II 2D Ex tb IIIC T100°C Db
-40°C ≤Ta ≤+70°C +82°C
Ex II 2G Ex db IIC T6…T5 Gb Ex II 2D Ex tb IIIC T85°C…T100°C Db
-40°C ≤Ta ≤+55°C or +60°C +80°C
IECEx ULD 23.0012X Ex db IIB+H2 T5 Gb
Ex tb IIIC T100°C Db -40°C ≤Ta ≤+70°C
+82°C Ex db IIC T6…T5 Gb
Ex tb IIIC T85°C…T100°C Db -40°C ≤Ta ≤+55°C or +60°C
+80°C UK Ex – UL23UKEX2846X
Ex II 2G Ex db IIB+H2 T5 Gb Ex II 2D Ex tb IIIC T100°C Db
-40°C ≤Ta ≤+70°C +82°C
Ex II 2G Ex db IIC T6…T5 Gb Ex II 2D Ex tb IIIC T85°C…T100°C Db
-40°C ≤Ta ≤+55°C or +60°C +80°C
KCs 24-KA4BO-0026X – 24-A4BO- 0028X
Ex db IIB+H2 T5 Gb Ex tb IIIC T100°C Db
-40°C ≤Ta ≤+70°C +82°C
KCs 24-KA4BO-0027X – 24- KA4BO-0028X
Ex db IIC T6…T5 Gb Ex tb IIIC T85°C…T100°C Db
-40°C ≤Ta ≤+55°C or +60°C +80°C
INMETRO UL-BR 24.0211X Ex db IIB+H2 T5 Gb
Ex tb IIIC T100°C Db -40°C ≤Ta ≤+70°C
+82°C Ex db IIC T6…T5 Gb
Ex tb IIIC T85°C…T100°C Db -40°C ≤Ta ≤+55°C or +60°C
+80°C cULus E319666 Hazardous
Location America Class I, Zone 1, AEx db IIB+H2 T4 Gb
Zone 21, AEx tb IIIC T135°C Db Class I, Div 2, Group B, C, D T4
Class II, Div 2, Group F, G T4 -40°C ≤Ta ≤+70°C
+84°C Class I, Zone 1, AEx db IIC T4 Gb
Zone 21, AEx tb IIIC T135°C Db Class I, Div 2, Group A, B, C, D T4
Class II, Div 2, Group F, G T4 -40°C ≤Ta ≤+60°C
+80°C cULus E319666 Hazardous
Location Canada Ex db IIB+H2 T4 Gb X
Ex tb IIIC T135°C Db X Class I, Div 2, Group B, C, D T4
Class II, Div 2, Group F, G T4 -40°C ≤Ta ≤+70°C
+84°C Ex db IIC T4 Gb X
Ex tb IIIC T135°C Db X Class I, Div 2, Group A, B, C, D T4
Class II, Div 2, Group F, G T4 -40°C ≤Ta ≤+60°C; +80°C
TS mark Ex db IIB+H2 T5 Gb
Ex tb IIIC T100°C Db -40°C ≤Ta ≤+70°C
+82°C Ex db IIC T6…T5 Gb
Ex tb IIIC T85°C…T100°C Db -40°C ≤Ta ≤+55°C or +60°C; +80°C
